Square Footprint Silos 3.0 ton – 20.0 ton capacity

Our standard square wood pellet silos are manufactured from galvanized steel and provide a robust, reliable, and cost-effective method of storing your wood pellet fuel. Their modular design allows them to be delivered to the site flat packed for quick and easy assembly.

  • Capacities range from 3 – 20 tons with standard footprints of 2m, 2.4m, and 2.8m.
  • Available in both indoor and outdoor models these silos are designed to prevent condensation and moisture ingress and maintain pellet quality over the life of its use.

Standard Features

Delivery & ventilation pipework to 1.5m from ground level with Storz 110A couplings and dustcaps
Fuel level viewing windows for checking pellet levels
Bag filling panel for manual loading of 15kg pellet bags
Manual Extraction chute for withdrawing pellets from the silo
Feedbox shut off slide
Access panels for cleaning, maintenance & inspection


click drop down menus below to get a silo quotation



Code

Capacity

Footprint

Height

Volume

Useful Capacity

Data Sheet

Quote

W322 3.0 Ton Pellet Silo 2m X 2m 2.225m 5.86m3 2.9 Tons DOWNLOAD
GET QUOTE
W3522 3.5 Ton Pellet Silo 2m X 2m 2.425m 6.72m3 3.4 Tons DOWNLOAD
GET QUOTE
W422 4.0 Ton Pellet Silo 2m X 2m 2.855m 8.44m3 4.5 Tons DOWNLOAD
GET QUOTE
W522 5.0 Ton Pellet Silo 2m X 2m 3.285m 10.16m3 5.5 Tons DOWNLOAD
GET QUOTE
W622 6.0 Ton Pellet Silo 2m X 2m 3.715m 11.88m3 6.6 Tons DOWNLOAD
GET QUOTE
W822 8.0 Ton Pellet Silo 2m X 2m 4.575m 15.32m3 8.8 Tons DOWNLOAD
GET QUOTE
W1022 10.0 Ton Pellet Silo 2m X 2m 5.435m 18.76m3 11.0 Tons DOWNLOAD
GET QUOTE

Code

Capacity

Footprint

Height

Volume

Useful Capacity

Data Sheet

Quote

W42-4 4.0 Ton Pellet Silo 2.4m X 2.4m 2.45m 8.78m3 4.1 Tons DOWNLOAD
GET QUOTE
W52-4 5.0 Ton Pellet Silo 2.4m X 2.4m 2.65m 10.02m3 4.9 Tons DOWNLOAD
GET QUOTE
W62-4 6.0 Ton Pellet Silo 2.4m X 2.4m 3.08m 12.50m3 6.5 Tons DOWNLOAD
GET QUOTE
W82-4 8.0 Ton Pellet Silo 2.4m X 2.4m 3.51m 14.98m3 8.1 Tons DOWNLOAD
GET QUOTE
W102-4 10.0 Ton Pellet Silo 2.4m X 2.4m 4.37m 19.94m3 11.35 Tons DOWNLOAD
GET QUOTE
W122-4 12.0 Ton Pellet Silo 2.4m X 2.4m 4.80m 22.42m3 12.96 Tons DOWNLOAD
GET QUOTE
W142-4 14.0 Ton Pellet Silo 2.4m X 2.4m 5.66m 27.38m3 16.18 Tons DOWNLOAD
GET QUOTE

Code

CAPACITY

FOOTPRINT

HEIGHT

VOLUME

USEFUL CAPACITY

Data Sheet

Quote

W62-8 6.0 Ton Pellet Silo 2.8m X 2.8m 2.64m 12.48m3 5.9 Tons DOWNLOAD
GET QUOTE
W82-8 8.0 Ton Pellet Silo 2.8m X 2.8m 3.27m 17.54m3 9.2 Tons DOWNLOAD
GET QUOTE
W102-8 10.0 Ton Pellet Silo 2.8m X 2.8m 3.70m 20.91m3 11.4 Tons DOWNLOAD
GET QUOTE
W122-8 12.0 Ton Pellet Silo 2.8m X 2.8m 4.13m 24.28m3 13.6 Tons DOWNLOAD
GET QUOTE
W142-8 14.0 Ton Pellet Silo 2.8m X 2.8m 4.56m 27.65m3 15.8 Tons DOWNLOAD
GET QUOTE
W162-8 16.0 Ton Pellet Silo 2.8m X 2.8m 4.99m 31.02m3 18.0 Tons DOWNLOAD
GET QUOTE
W182-8 18.0 Ton Pellet Silo 2.8m X 2.8m 5.42m 34.39m3 20.2 Tons DOWNLOAD
GET QUOTE
W202-8 20.0 Ton Pellet Silo 2.8m X 2.8m 5.66m 37.76m3 22.3 Tons DOWNLOAD
GET QUOTE



Optional Extras

img-2

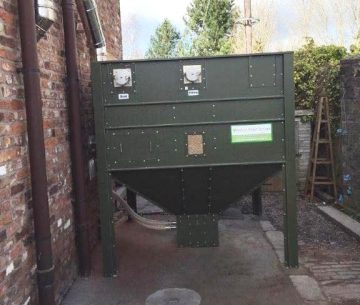

Powder Coated Finish

All of our silos can be powder coated to a colour of choice. This allows customers to colour match their silo to a nearby building and help it to blend in to its natural surroundings. Powder coating also adds an additional 20 years of corrosion resistance to silos situated outdoors

img-3

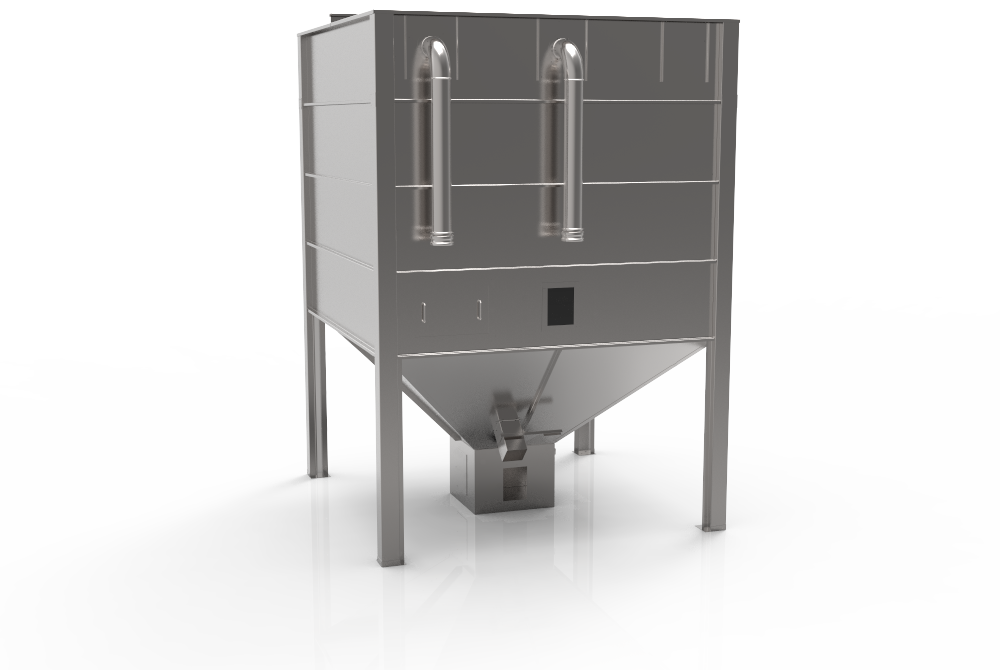

60 Degree Conical Base

A 60 degree conical base will minimise dust separation within your silo and hence minimise the need for periodic cleaning and maintenance. This is highly recommended for commercial silos. Please note that this option will increase the overall height of the silo.

img-4

Apex Roof

An apex roof option is available on all silos as an alternative to the standard flat roof.  This roof type has a 15 degree incline and is recommended in area’s with regular snowfall to prevent snow build up. Many customers also choose the apex roof option for aesthetic reasons if their silo is to be […]
