Rectangular Footprint Pellet Silos 3.0 ton – 20.0 ton capacity

/Rectangular Footprint Pellet Silos 3.0 ton – 20.0 ton capacity

Rectangular Footprint Pellet Silos 3.0 ton – 20.0 ton capacity

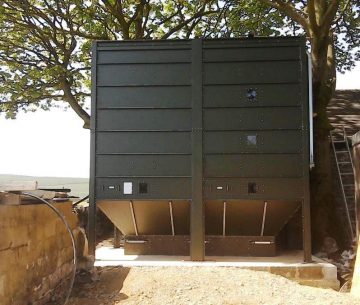

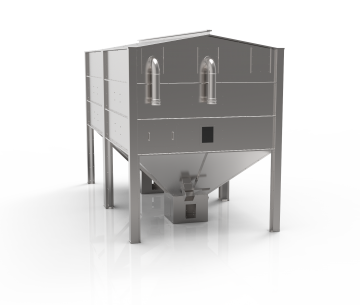

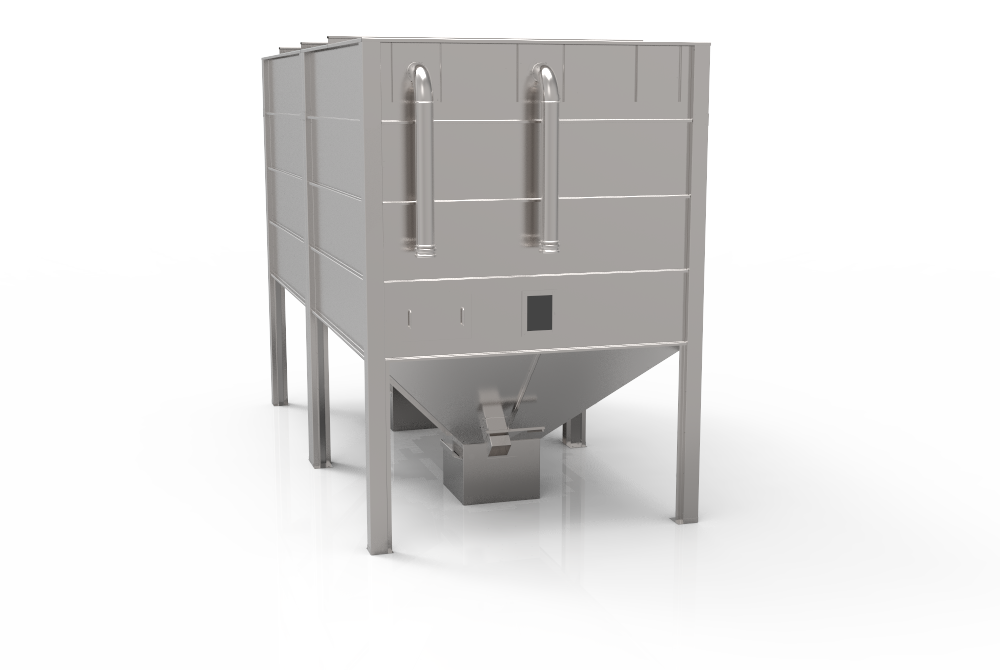

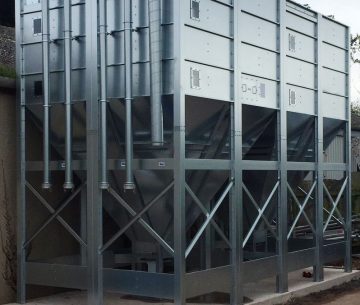

Our standard rectangular footprint silos are manufactured from galvanized steel and allow users to benefit from increased capacity without the need to increase the height of the silo.

Capacities range from 6 – 20 ton with standard footprints of 2mX4m, 1mX3m, and 1mX4m.

A range of different silos bases can be manufactured either to suit our own boiler feed options or alternatively to integrate third-party boiler feed systems when required

Standard Features

Delivery & ventilation pipework to 1.5m from ground level with Storz 110A couplings and dustcaps
Fuel level viewing windows for checking pellet levels
Bag filling panel for manual loading of 15kg pellet bags
Manual Extraction chute for withdrawing pellets from the silo
Feedbox shut off slide
Access panels for cleaning, maintenance & inspection


click drop down menus below to get a silo quotation



Code

Capacity

Footprint

Height

Volume

Useful Capacity

Data Sheet

Quote

W624 6.0 Ton Pellet Silo 2m X 4m 2.225m 11.72m3 5.8 Tons DOWNLOAD
GET QUOTE
W724 7.0 Ton Pellet Silo 2m X 4m 2.425m 13.44m3 6.8 Tons DOWNLOAD
GET QUOTE
W824 8.0 Ton Pellet Silo 2m X 4m 2.855m 16.88m3 9.0 Tons DOWNLOAD
GET QUOTE
W1024 10.0 Ton Pellet Silo 2m X 4m 3.285m 20.32m3 11.0 Tons DOWNLOAD
GET QUOTE
W1224 12.0 Ton Pellet Silo 2m X 4m 3.715m 23.76m3 13.2 Tons DOWNLOAD
GET QUOTE
W1424 14.0 Ton Pellet Silo 2m X 4m 4.145m 27.20m3 15.4 Tons DOWNLOAD
GET QUOTE
W1624 16.0 Ton Pellet Silo 2m X 4m 4.575m 30.64m3 17.6 Tons DOWNLOAD
GET QUOTE
W2024 20.0 Ton Pellet Silo 2m X 4m 5.435m 37.52m3 22.0 Tons DOWNLOAD
GET QUOTE

Code

Capacity

Footprint

Height

Volume

Useful Capacity

Data Sheet

Quote

W313 3.0 Ton Pellet Silo 1m X 3m 2.855m 5.90m3 3.5 Tons DOWNLOAD
GET QUOTE
W413 4.0 Ton Pellet Silo 1m X 3m 3.285m 7.19m3 4.3 Tons DOWNLOAD
GET QUOTE
W513 5.0 Ton Pellet Silo 1m X 3m 3.715m 8.48m3 5.2 Tons DOWNLOAD
GET QUOTE

Code

Capacity

Footprint

Height

Volume

Useful Capacity

Data Sheet

Quote

W314 3.0 Ton Pellet Silo 1m X 4m 2.225m 5.30m3 3.2 Tons DOWNLOAD
GET QUOTE
W414 4.0 Ton Pellet Silo 1m X 4m 2.855m 7.88m3 4.9 Tons DOWNLOAD
GET QUOTE
W514 5.0 Ton Pellet Silo 1m X 4m 3.285m 9.60m3 6.0 Tons DOWNLOAD
GET QUOTE
W614 6.0 Ton Pellet Silo 1m X 4m 3.715m 11.32m3 7.1 Tons DOWNLOAD
GET QUOTE



Optional Extras

Powder Coated Finish

All of our silos can be powder coated to a colour of choice. This allows customers to colour match their silo to a nearby building and help it to blend in to its natural surroundings. Powder coating also adds an additional 20 years of corrosion resistance to silos situated outdoors

60 Degree Conical Base

A 60 degree conical base will minimise dust separation within your silo and hence minimise the need for periodic cleaning and maintenance. This is highly recommended for commercial silos. Please note that this option will increase the overall height of the silo.

Apex Roof

The option of an apex roof is available for customers situated in area’s with high snowfall. This helps prevent the build-up of snow on the roof which can cause corrosion and warping over time.
